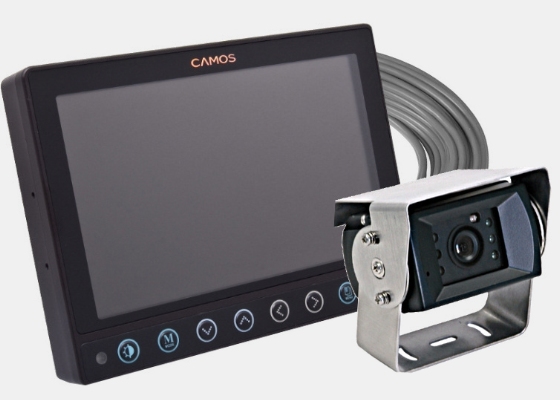

CWM-732AH Rear View Camera Kit

                    Replaced by CWM-76512M
















                            Order / Inquire



CWM-704N Monitor


Heavy Duty Series Monitors

IP67 DUST & W/PROOF RATED

METAL CASING (Aluminum)

VIBRATION RESISTANT

4 CAMERA CAPABLE

BRIGHT LCD SCREEN 400 cd

4 SPLIT SCREEN DISPLAY (4 Sections)

7 LANGUAGE O.S.D (Includes French)

MULTI-VOLTAGE (12 – 24v DC)

DIMMER SELECTION FUNCTION

“U” Shape METAL MOUNTING BRACKET

MADE IN S/KOREA



 More Detail:





7" Hi-Res LCD Monitor: HD 720p / FHD 1080p(TVI, AHD type)
Resolution: WVGA (800x480)

Brightness: 400 cd/m2

Contrast Ratio: 500:1

View Angle: 70˚ / 70˚ / 50˚ / 70˚

Power Supply: 12-24VDC

Power Draw: 550mA @12VDC

Video System: Auto - NTSC/PAL

Video Signal: 1Vp-p

Audio Input: Mono

Speaker Output: 0.5 Watts

Menu Languages:  ENGLISH - FRENCH - GERMAN - ITALIAN – SPANISH

Operating Temperature: - 30°C - +70°C

Dimensions: 180W x 133H x 37D (all mm.)

Weight: 860 gm. (+/- 1.9 lb.)

CM-32AH Camera


1/3” CCD image sensor

6 pcs of IR LEDs for night

Audio Built-in

Waterproof IP-67

Heating function Built-in

Aluminum die-casting housing

Photo sensor


Pick-up device

1/3” COLOR CCD (NTSC/PAL)

View of angle

95 (H) / 70 (V) / 120 (D)

Min. illumination

0.1 lux

Operating temp.

-30˚C ~ 70˚C

Storage temp.

-40˚C ~ 80˚C

Input voltage

DC 12V / 200mA Max.

Dimension

70(W) x 44(H) x 57(D) mm

Weight

400g (with bracket)
