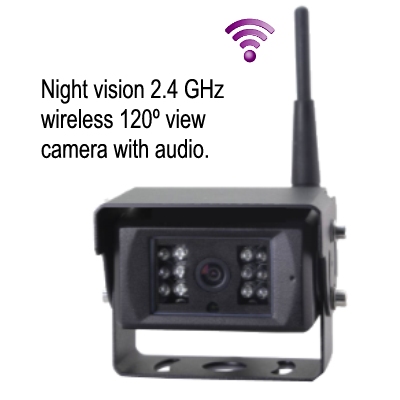

C639WL
Camera Specifications: |
| |
| • 2.4G digital wireless
camera |
| • Image device: 1/3" SHARP
CCD |
| • TV system: PAL: 25f/s
|
| • NTSC: 30f/s |
| • Effective pixels: 512 x
582 pixels / 512 x 492 pixels |
| • Detection area: 4.9 mm x
3.7mm |
| • Scan system: 2:1
Interlace |
| • Sync system: Internal
Resolution: 420 |
| • Minimum ilumination: 0.1
Lux (day), 0 Lux (with IR) |
| • Microphone: YES |
| • Video output: 1.0 vp-p,
75 Ohm |
| • Gama consumption:0.45
|
| • AGC: auto |
| • S/N rate: Better than 48
dB |
| • White balance: auto |
| • Electronic shutter:
1/50(PAL)/1/60(NTSC)~1/100,000 Seconds |
| • Light compensation: auto
|
| • Current consumption:
maximun 400mA |
| • Power supply: DC 12 V
|
| • Operating frequency: 2400
-2483.5MHz |
| • Transmitting
distance:120M |
| • Recieving sensitivity:
-78dBm |
| • Decompression form: MPEG4
|
| • Emitting frequency:18dBm
|
| • Transmitting speed:
12Mbps |
| • Spread spectrum:
frequency hopping |
| • Hopping frequency:
1200Hops/S delaying time: 400ms |
| • Operating temperature:
-20 ~ +60 ? RH90% |
| • Storage temperature: -30
~ +80 ? RH90% |
