DESCRIPTION |
| |
|
| • |

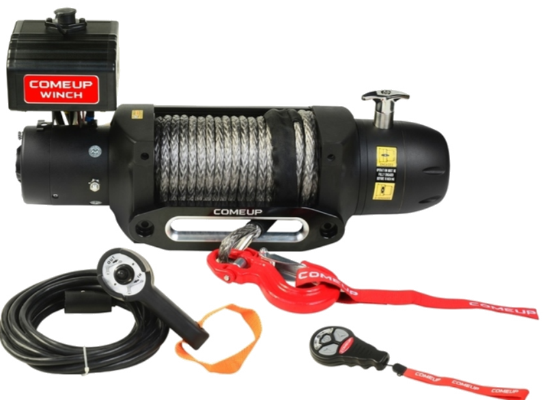

12V DC severe duty winch
rated at 12,500 lbs pulling meets or exceeds your
expectations.
|
| • |
Heavy duty series
wound motor equipped with thermal switch alters when
motor over-heating |
| • |
4 equally positioned pin holes with a stainless
steel ergonomic T-handle make it possible to clock
in 90 degree Increments.
|
| • |
Water-proof remote control
with thermometric LED indicator w/5 m cord. |
| • |
Tough aluminum die cast
housings withstand strength of 2.0 x rated load of
winch in foot forward mounting |
| • |
The U.S. Germany, U.K.
France, etc patented mechanical cone brake outside
the drum expedites heat dispersion. The greater the
load on the rope, the greater amount of braking is
generated by the mechanism. |
| • |
Meet SAE J706, CE
Machinery Directive 2006/42/EC and CE
Electromagnetic Compatibility Directive 2004/108/EC. |
|
|
|
SPECIFICATIONS |
|
|
|
|
Rated Line Pull |
12,500 lbs (5,670 kg) single line |
|
Motor |
5.0 hp / 3,730 w 12V Series Wound |
|
Gear Ratio |
3-Stage Planetary 225:1 |
|
Clutch (freespooling) |
Rotating Ring Gear |
|
Brake (outside the drum) |
Automatic, full load CBS (Cone Brake
Structure) |
|
Winch Construction |
Aluminum Die Cast Housing with Steel
Drum |
|

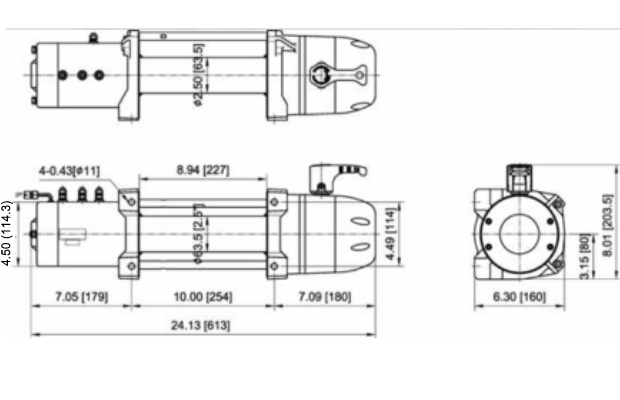

Drum Size |
2.5" x 9" (63.5 x 228 mm) |
|
Control |
Both built-in digital two way signal
wireless remote control and
waterproof remote with thermometric
indicator LED w/17' (5 m) cord |
|
Rope Type |
Synthetic Rope |
|
Rope Size |
7/16" x 82' (11 mm x 25 m) |
|
Mounting Bolt Pattern |
10" x 4.5" (254 x 114 mm) |
|
Winch Weight |
61.7 lb (28 kg) |
|
Gross Weigh |
89.1 lb (40.5 kg) |
|
Warranty |
Limited lifetime warranty for
mechanical components, three (3)
year warranty for electrical
components |
|
Box Dimensions |
26.9" x 8.2" x 16.9" (682 x 209 x
430 mm ) |
|
|
