DESCRIPTION |
| |
|
| • |

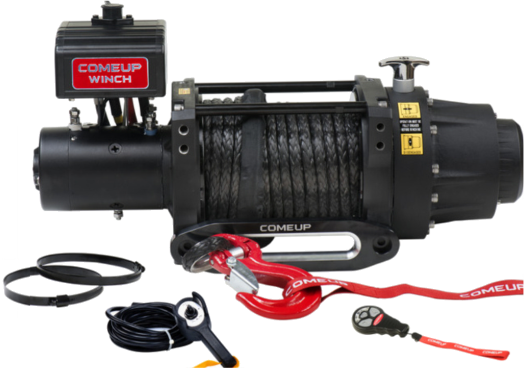

12V DC severe duty winch
rated at 16,500 lb pulling meets or exceeds your
expectations. |
| • |
Heavy duty series wound
motor equipped with thermal switch alters when motor
over-heating. |
| • |
4 equally positioned pin
holes with a stainless steel ergonomic T-handle make
it possible to clock in 90 degree Increments. |
| • |
Water-proof remote control
with thermometric LED indicator w/5 m cord |
| • |
Tough aluminum die cast
housings withstand strength of 2.0 x rated load of
winch in foot forward mounting |
| • |
The U.S. Germany, U.K.
France, etc patented mechanical cone brake outside
the drum expedites heat dispersion. |
| • |
The greater the load on the
rope, the greater amount of braking is generated by
the mechanism. |
| • |
A 12 strand construction synthetic rope coated
to improve abrasion and has no water absorption.
|
| • |
Meets international
standards of CE Machinery Directive 2006/42/CE, CE
Electromagnetic Compatibility Directive 2004/108/EC,
and SAE J706 Surface Vehicle standard 2003-08 rev |
|
|
|
SPECIFICATIONS |
|
|
|
Rated Line Pull |
16,500 lbs (7,484 kg) single
line |
|
Motor |
5.8 hp / 4,325w 12V Series
Wound |
|
Gear Ratio |
3-Stage Planetary 343:1 |
|
Clutch (freespooling) |
Rotating Ring Gear |
|
Brake (outside the drum) |
Automatic, full load CBS
(Cone Brake Structure) |
|
Winch Construction |
Aluminum Die Cast Housing
with Steel Drum |
|
Drum Size |
3.5" x 8" (89 x 204 mm) |
|
Control |
Both built-in digital two
way signal wireless remote
control and waterproof
remote with thermometric
indicator LED w/17' (5 m)
cord |
|
Rope Type |
Synthetic Rope |
|
Rope Size |
1/2" x 82' (12 mm x 25 m) |
|

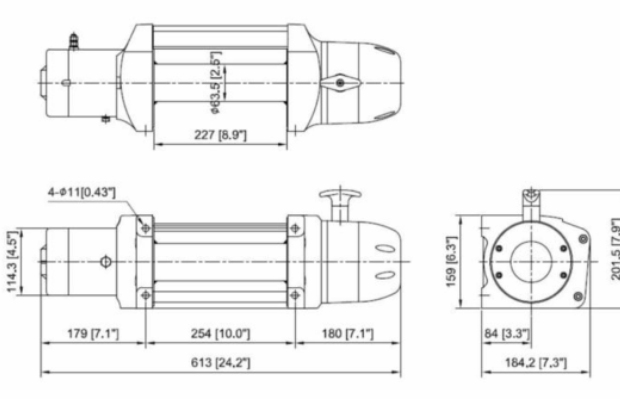

Mounting Bolt Pattern |
10" x 4.5" (254 x 114 mm),
10" x 6.5" (254 x 165 mm) |
|
Winch Weight |
132 lb (60 kg) |
|
Gross Weight |
150 lb (68 kg) |
|
Warranty |
Limited lifetime warranty
for mechanical components,
three (3) year warranty for
electrical components |
|
Box Dimensions |
27.2" x 10.6" x 15.9" (690 x
270 x 405 mm ) |
|
|
|
